The company operates a fleet of specialized rolling stock for transporting grain and other bulk food cargo, consisting of hopper wagons of models 11–739, 19–752.

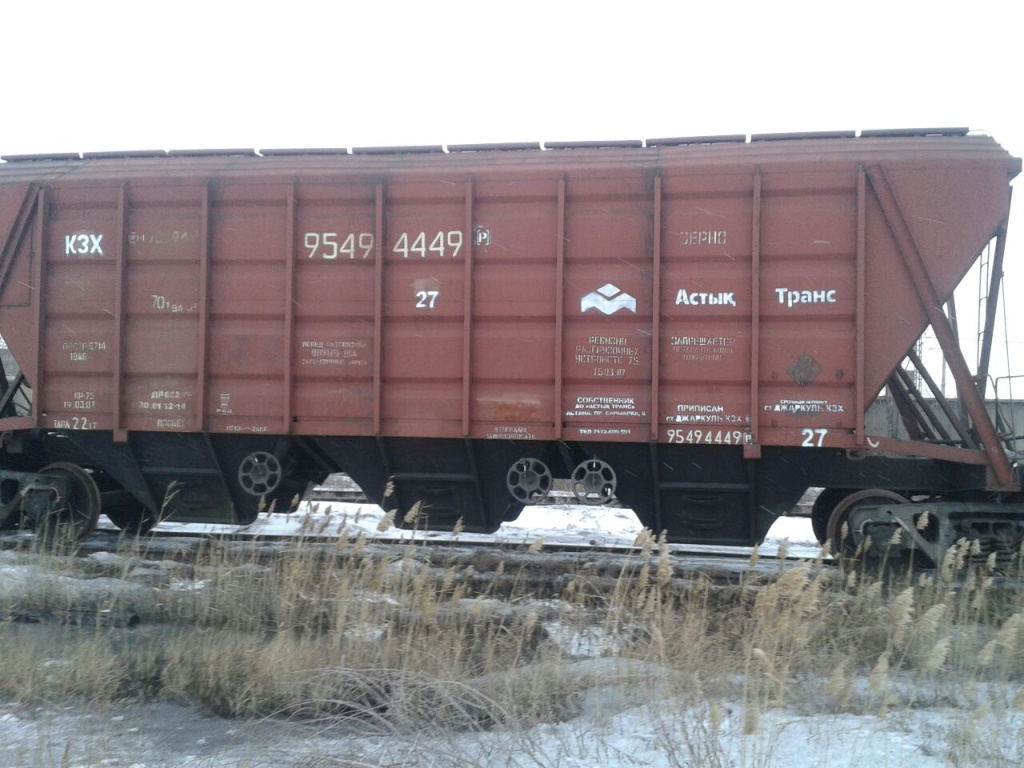

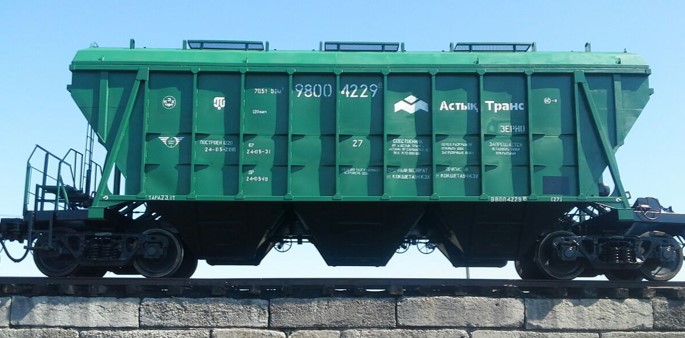

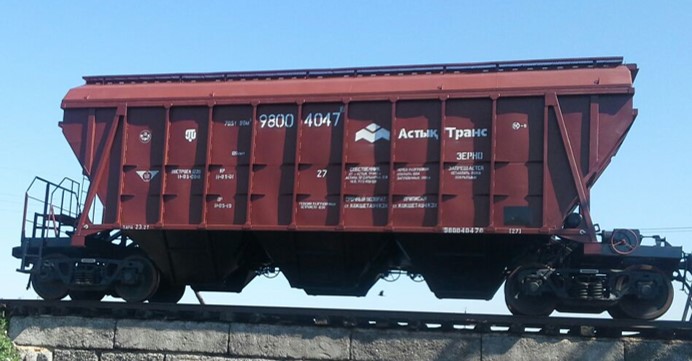

Hopper wagon

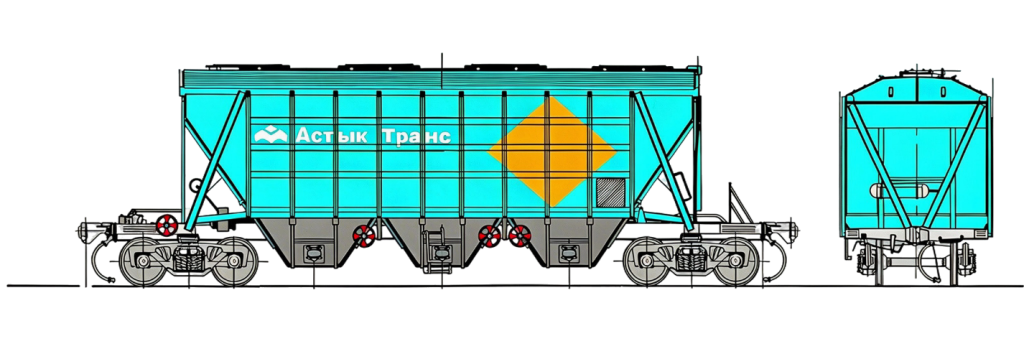

Technical specifications of model 19–752
Purpose: transportation of grain and other food, bulk cargo.
- Project no.: 75200 000–1
- Technical conditions: ТУ24-05-491 81
- Wagon model: 19–752
- Wagon type: 950
- Producer: Кр ВЗ
- Carrying capacity, tons: 70
- Wagon tare weight, tons: 23
- Load:
- Static axial, kN(tf): 225,5 (23 25)
- linear, kN/m (tf /m): 61,3 (63–5)
- Structural speed, km/h: 120
- Dimension: 1ВМ(0Т)
- Wagon base, mm: 10500
- Length, mm:
- couplings: 14720
- frame end beams (frame length): 13500
- upper harness: 1 0900
- inside the wagon (at the top): 10700
|
- Maximum width, mm: 3240
- Height above top rail, mm:
- maximum: 4565
- up to unloaders: 350
- Number of axles, pcs: 4
- 2-axle trolley model: 18 100
- Availability of a transitional area: yes
- Availability of a transitional platform with a hand brake: no
- Availability of the parking brake: yes
- Body volume, m3: 94
- Number of hatches, pcs:
- Sizes of the hatch in the light, mm:
- loading: 1592×562
- unloading: 1080×475
- The angle of inclination of the end walls, degrees: 65
- Hopper angle, degrees: 55
|

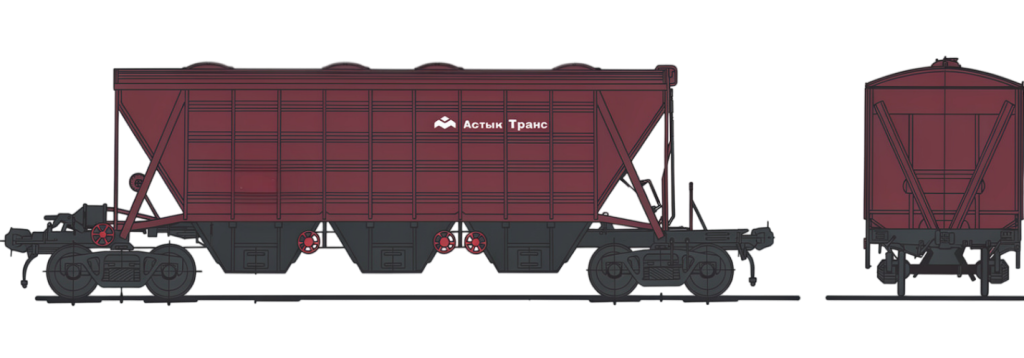

Technical specifications of model 11–739
Purpose: transportation of grain and other food, bulk cargo.
- Project no.: 739.00. 000–1
- Technical conditions: ТУ24-5-322-75
- Wagon model: 19–739
- Wagon type: 950
- Producer: ОАО «КВСЗ»
- Carrying capacity, tons: 65
- Wagon tare weight, tons: 22
- Load:
- Static axial, kN(tf): 213,15 (21,93)
- linear, kN/m (tf /m): 57,8 (5,9)
- Structural speed, km/h: 120
- Dimension: 1ВМ(0Т)
- Wagon base, mm: 10500
- Length, mm:
- couplings: 14720
- frame end beams (frame length): 13500
- upper harness: 1 0900
- inside the wagon (at the top): 10700
- Maximum width, mm: 3240
|
- Height above top rail, mm:
- maximum: 4653
- up to unloaders: 350
- Number of axles, pcs: 4
- 2-axle trolley model: 18 100
- Availability of a transitional area: yes
- Availability of a transitional platform with a hand brake: no
- Availability of the parking brake: yes
- Body volume, m3: 93
- Number of hatches, pcs:
- Sizes of the hatch in the light, mm:
- loading: Ø576
- unloading: 476×1080
- The angle of inclination of the end walls, degrees: 55
|
